Eigenschaften

Technische Daten

MODEI: S29

Kühlleistung: 31.3 kW

Luftstrom: 10040

Kompressor: Rotor/Vortex

Lüftertyp: AC/EC-Radialventilator mit hinterer Neigung

Befeuchtungsbreite und Tiefenkapazität: 12

Luftfilter: Plattenfilter G4

Einheitsgröße: 1200*650*1900

Grundinformation

Herkunftsort: China

Markenname: Hailos

Modellnummer: S29

Zahlung und Versand AGB

Verpackung Informationen: Holzkartons

Lieferzeit: 5-8 Wochen

Zahlungsbedingungen: T/T

Versorgungsmaterial-Fähigkeit: 500 Sätze pro Monat

Galerie

Precision Air Conditioner compact and constant temperature and humidity control system for computer room applications

Produkt-Beschreibung

Description

The launch of the S-series precision controlled const ant temperature and humiditydedicated air conditioning system for computer rooms has pushed industry standardsto a new level in terms of energy officiency, compactness, and low nonse performance

The innova tive dffuse air supply me thod achieves optimal performance while savinguser Investment and minimizhg the height requirements of the computer room. Theplug-in fan. large area evaporator. vortex compressor, and optimtzed refrigorationsystem significantly Improve energy-saving performance. The air supply method can beswitched on-site

Electronic speed regulation fan (EC fan) reduces fan power consurption by 35%The fan placed above optimizes the airflow through the evaporator coll of the lowerair supply model, improves heat transfer efficloncy (compared to the Industry average)by 20%, and reduces overall noise

Specification

Model	SXX		S04	S05	S07	S10	S12	S17	S20	S23	S29
cooling capacity	capacity	KW	4.4	5.5	8.1	10.4	12.8	16.9	20.1	25.6	31.3
cooling capacity	Sensible cooling capacity	KW	4.3	5.2	7.6	10	12.5	16.1	19	23.1	30.3
compressor	Form		Rotor/Scroll
compressor	Quantity		1	1	1	1	1	1	1	1	1
Fan	Type		AC/EC backward-curved centrifugal fan
	Air flow	m3/h	1350	1550	2300	2800	3000	5250	5800	6150	10040
	Quantity		1	1	1	1	1	1	2	2	2
Heater	Type		PTC
Heater	Heating amount	KW	3	3	3	4	6	6	10	12	12
Humidifier	Type		Wet film humidification
Humidifier	Humidification	kg/h	3	3	3	4	4.5	4.5	9	9	9
air filter			G4 plate filter
Unit size	W	mm	750	750	750	750	750	750	1200	1200	1200
	D	mm	500	500	500	500	500	500	650	650	650
	H	mm	1800	1800	1800	1900	1900	1900	1900	1900	1900
Connecting pipe	gas	mm	12.7	12.7	12.7	15.8	15.8	15.8	22	22	22
	liquid pipe	mm	9.52	9.52	9.52	12.7	12.7	12.7	19	19	19
	Drain pipe	mm	φ20	φ20	φ20	φ20	φ20	φ20	φ20	φ20	φ20
	Humidifier water inlet pipe	in	φ20	φ20	φ20	φ20	φ20	φ20	φ20	φ20	φ20
	Cooling water inlet and outlet pipes	in	/	/	/	/	/	/	/	/	/
Weight	Indoor unit (air-cooled)	kg	130	135	140	145	150	180	245	295	330
Weight	Indoor unit (water-cooled)	kg	110	115	120	125	130	150	220	260	300
Power distribution parameters	Power		220V/380V50HZ
	Recommended circuit breaker	D	D32	D32	D32	D32	D32	D63	D63	D63	D63
	Wiring specifications	mm2	3*4	3*4	5*4	5*6	5*6	5*6	310+24	310+24	310+24
Outdoor unit	Model		S04W	S05W	S07W	S10W	S12W	S17W	S20W	S23W	S29W
	Quantity		1	1	1	1	1	1	1	1	1
	Weight	kg	30	35	40	50	50	60	80	100	120
	Wiring specifications	mm2	3*1.5	3*1.5	3*1.5	3*1.5	3*1.5	3*2.5	3*2.5	3*2.5	3*2.5
	W	mm	800	800	960	960	850	850	850	850	850
	D	mm	290	290	380	380	455	455	455	455	455
	H	mm	600	600	800	800	800	1600	1600	1600	1600

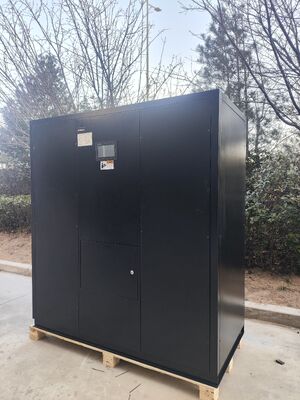

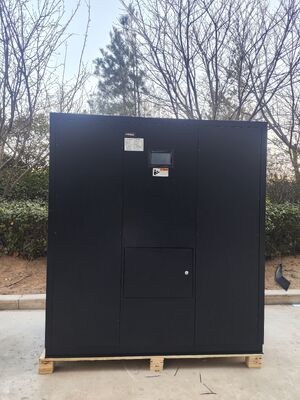

Product Display

Precision Air Conditioner compact and constant temperature and humidity control system for computer room applications 0

Precision Air Conditioner compact and constant temperature and humidity control system for computer room applications 1

Precision Air Conditioner compact and constant temperature and humidity control system for computer room applications 2
